Flag Editor

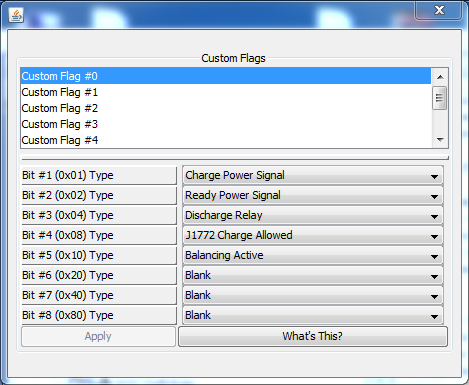

Custom flags can be editted through the CANBUS message editor by clicking the "Edit Flags" button. Each custom flag consists of 8 programmable bits (ranging from #1 to #8). Each bit has a corresponding value that is selectable through the drop down menus.

Available Flags:

• Blank: A value of 0 is always loaded

• Constant 1: A value of 1 is always loaded

• Ready Power Signal: This value is 1 when Ready Power signal is energized.

• Charge Power Signal: This value is 1 when Charge Power signal is energized.

• Multi-Purpose Output 1: Value is 1 when multi-purpose output #1 is activated (engaged).

• Multi-Purpose Output 2: Value is 1 when multi-purpose output #2 is activated (engaged).

• Multi-Purpose Output 3: Value is 1 when multi-purpose output #3 is activated (engaged).

• Multi-Purpose Output 4: Value is 1 when multi-purpose output #4 is activated (engaged).

• Multi-Purpose Enable: Value is 1 when multi-purpose enable is activated (engaged).

• Depleted: Value is 1 when the Pack SOC is equal to or lower than the "Discharged SOC' parameter value available on the "SOC Settings' tab of the profile.

• Discharge Relay: Value reflects the status of the Discharge-Enable relay (1 = ON, 0 = OFF).

• Charge Relay: Value reflects the status of the Charge-Enable relay (1 = ON, 0 = OFF).

• Charger Safety: Value reflects the status of the Charger Safety relay (1 = ON, 0 = OFF).

• Discharge Relay Inverted: Value reflects the exact inverted status of the Discharge-Enable relay (0 = ON, 1 = OFF).

• Charge Relay Inverted: Value reflects the exact inverted status of the Charge-Enable relay (0 = ON, 1 = OFF).

• Charger Safety Inverted: Value reflects the exact inverted status of the Charger Safety relay (0 = ON, 1 = OFF).

• Charge Interlock: Value is 1 when both Charge Power and Ready Power signals are energized. This is useful for determining when a vehicle is both ON and plugged in.

• Voltage Failsafe: Value indicates whether the voltage failsafe condition has been activated (ie: a problem with the voltage sensing equipment).

• Current Failsafe: Value indicates whether the current failsafe condition has been activated (ie: a problem with the current sensor).

• Input Power Supply Failsafe: Value indicates whether the low voltage input power supply failsafe condition has been activated (ie: the BMS is being powered with less than +8vDC).

• Multi-Purpose Input 1: Value is 1 when multi-purpose input 1 is energized (engaged).

• Multi-Purpose Input 2: Value is 1 when multi-purpose input 2 is energized (engaged).

• Multi-Purpose Input 3: Value is 1 when multi-purpose input 3 is energized (engaged).

• Balancing Active: Value indicates whether the battery pack is currently performing balancing (1 = YES, 0 = NO).
