Live CANBUS Traffic

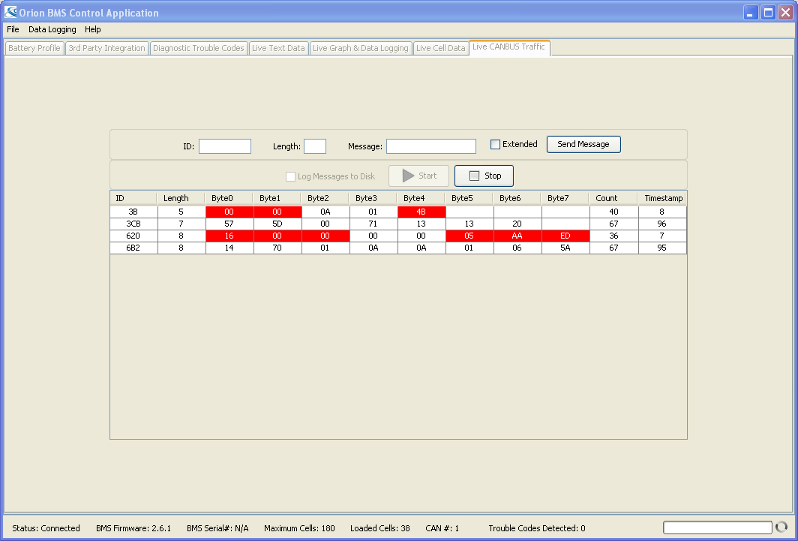

This screen provides access to live CANBUS traffic on the CANBUS network. It also allows for messages to be manually transmitted through the CANdapter onto the network.

CANBUS traffic can be logged to disk by using the "Log Messages to Disk' option. If this is selected, the utility will prompt the user for a destination folder for the logfile when the "Start' button is pressed. The log will be saved in the destination folder as a zipped archive.

Note: A red background on a cell indicates that particular cell contents have changed since the live CANBUS viewing was started.
